Vector - Attributes

In the previous tutorial, we created a bare minimum config to describe a vector asset. The generated STAC thus contains only the geometry information. In this example, we will enhance the metadata by adding more descriptive fields such as title and description. Additionally, we will describe attributes contained within the vector file. We still use the same asset Werribee.json in the downloaded zip file.

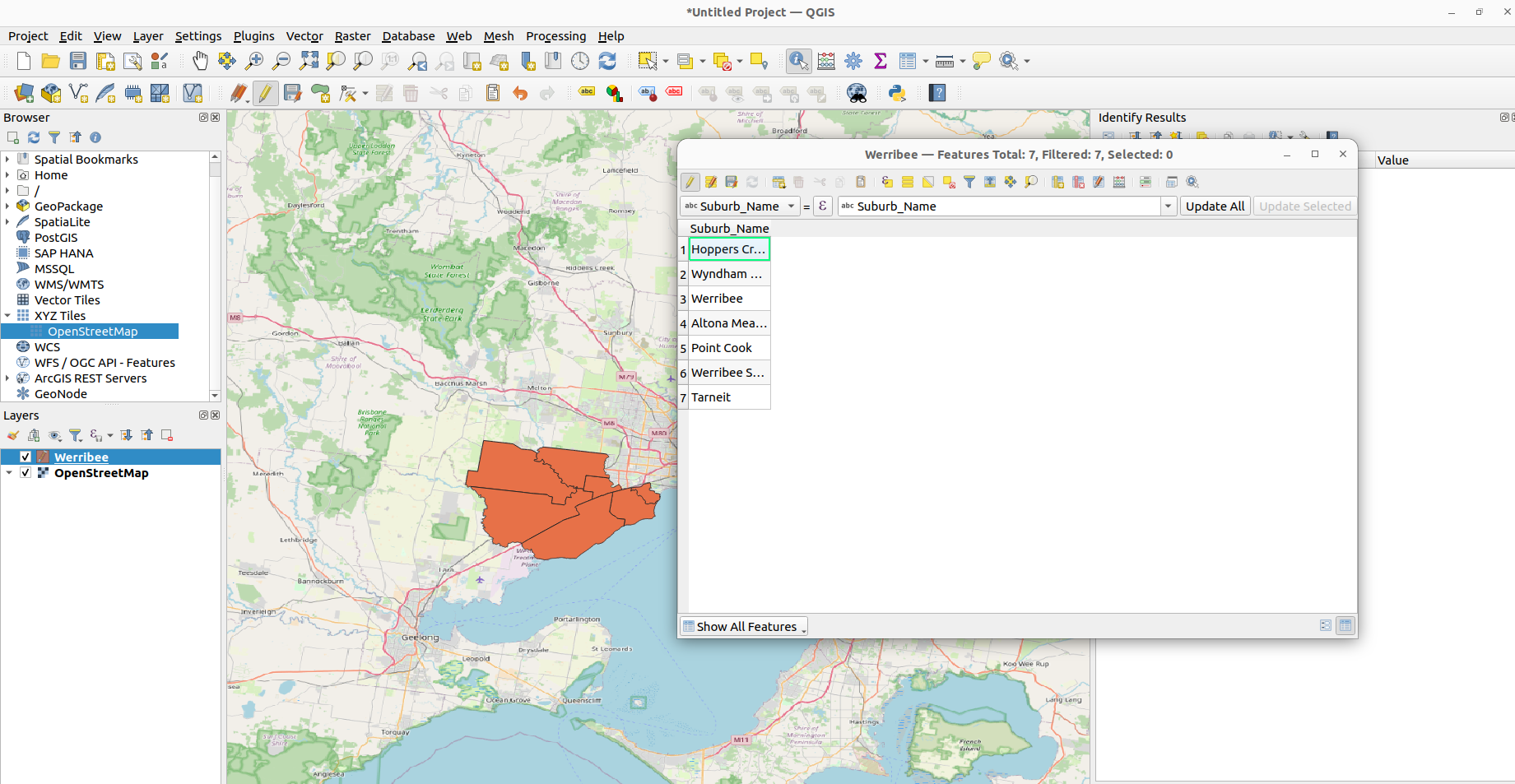

For instance, the shape file Werribee.geojson has an attribute called Suburb_Name:

Config

vector_detailed_config.json
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
[
  {
    "id": "Werribee",
    "location": "Werribee.geojson",
    "collection_date": "2025-01-01",
    "collection_time": "00:00:00",
    "title": "Werribee Item",
    "description": "Suburbs near Werribee Melbourne",
    "column_info": [
      {
        "name": "Suburb_Name",
        "description": "suburb name"
      }
    ]
  }
]
vector_detailed_config.yaml
1
2
3
4
5
6
7
8
9
- id: "Werribee"
  location: "Werribee.geojson"
  collection_date: "2025-01-01"
  collection_time: "00:00:00"
  title: "Werribee Item"
  description: "Suburbs near Werribee Melbourne"
  column_info:
    - name: "Suburb_Name"
      description: "suburb name"

Field Explanation

The basic fields are the same as those in the previous section. The additional fields are:

  • title: item's title
  • description: item's description
  • column_info: contains a list of column objects with attribute name and description. This field is used to represent the attributes contained in the vector file.

STAC Common-metadata like title and description can be included in generated STAC records by adding them in the item config. Users can describe the attributes associated with the vector file through the keyword column_info. Users don't need to describe all attributes, but if one of the column objects provided in column_info is not present, the program will raise an error.

To see a list of supported metadata, please refer to the relevant documentation.

Command and Output

Save this config as vector_detailed_config.json/vector_detailed_config.yaml in the same folder and run the serialisation command:

stac_generator serialise vector_detailed_config.json

The fields title, description, and column_info should appear correctly under the generated item's properties.
