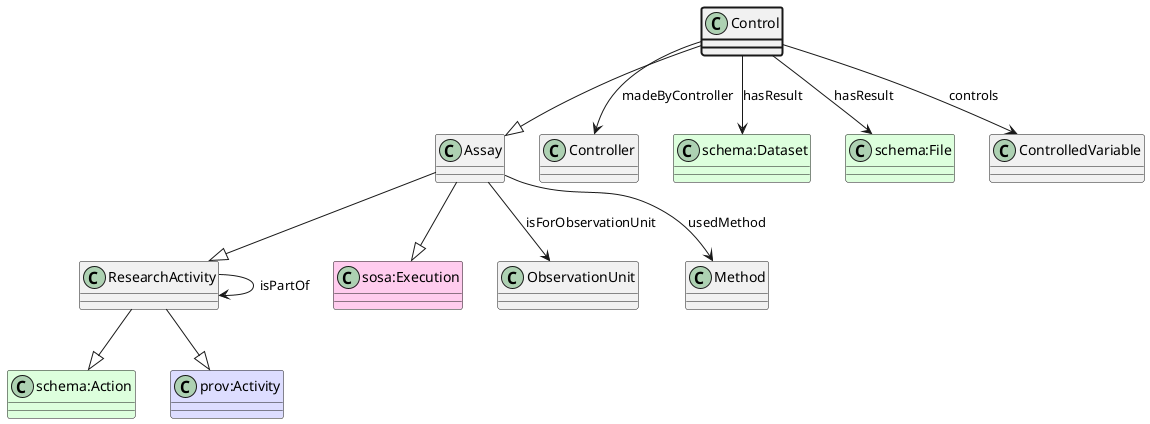

Control

https://schema.plantphenomics.org.au/Control

An Assay that modifies a property of an ObservationUnit.

Superclasses

• https://schema.plantphenomics.org.au/Assay
• https://schema.plantphenomics.org.au/ResearchActivity
• https://schema.org/Action
• http://www.w3.org/ns/prov#Activity
• https://www.w3.org/ns/sosa/Execution

Properties

• appn:Control appn:madeByController appn:Controller
  • Identifies the entity (Controller, i.e. one of a Person, Actuator, SoftwareApplication or ExternalEvent) responsible for carrying out a Control or Treatment.
• appn:Control appn:hasResult schema:Dataset
  • Identifies a data output from an Observation or Control assay. Individual values are represented by sosa:hasSimpleResult.
• appn:Control appn:hasResult schema:File
  • Identifies a data output from an Observation or Control assay. Individual values are represented by sosa:hasSimpleResult.
• appn:Control appn:controls appn:ControlledVariable
  • Identifies a ControlledVariable controlled by a Control assay. The Control adjusts the state of the ControlledVariable to the value specified in any hasResult or hasSimpleResult property.
• appn:Assay appn:isForObservationUnit appn:ObservationUnit
  • Relates an Assay to an ObservationUnit for which it is carried out. Note that when the Assay is an Observation, the model should infer a schema:observationAbout property from isForObservationUnit.
• appn:Assay appn:usedMethod appn:Method
  • Identifies a Method used to conduct an Assay.
• appn:ResearchActivity appn:isPartOf appn:ResearchActivity
  • Relates an Assay to the Study that includes it or a Study to an Investigation.
