Treatment

https://schema.plantphenomics.org.au/Treatment

An Assay that adds a Substance or a SubstanceQuantity to an ObservationUnit (includes potting, fertigation, pesticide application, addition of beneficials, etc.).

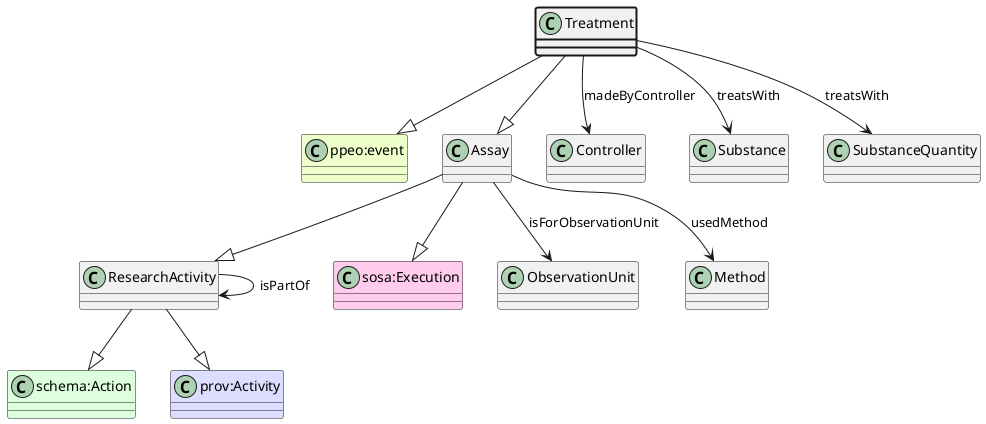

UML diagram for Treatment

Superclasses

Properties

  • appn:Treatment appn:madeByController appn:Controller
    • Identifies the entity (Controller, i.e. one of a Person, Actuator, SoftwareApplication or ExternalEvent) responsible for carrying out a Control or Treatment.
  • appn:Treatment appn:treatsWith appn:Substance
    • Identifies a Substance or a SubstanceQuantity associated with a Treatment assay. The Treatment makes an input of a quantity of some Substance associated with the SubstanceQuantity. If the result is a known final state for a variable associated with an ObservationUnit, the assay should be modeled as a Control with a ControlledVariable. Treatments are for cases where no definite resulting value is recorded.
  • appn:Treatment appn:treatsWith appn:SubstanceQuantity
    • Identifies a Substance or a SubstanceQuantity associated with a Treatment assay. The Treatment makes an input of a quantity of some Substance associated with the SubstanceQuantity. If the result is a known final state for a variable associated with an ObservationUnit, the assay should be modeled as a Control with a ControlledVariable. Treatments are for cases where no definite resulting value is recorded.
  • appn:Assay appn:isForObservationUnit appn:ObservationUnit
    • Relates an Assay to an ObservationUnit for which it is carried out. Note that when the Assay is an Observation, the model should infer a schema:observationAbout property from isForObservationUnit.
  • appn:Assay appn:usedMethod appn:Method
    • Identifies a Method used to conduct an Assay.
  • appn:ResearchActivity appn:isPartOf appn:ResearchActivity
    • Relates an Assay to the Study that includes it or a Study to an Investigation.
