ObservedVariable

https://schema.plantphenomics.org.au/ObservedVariable

A Variable (representation of a Trait using a defined Scale) observed or measured for an ObservationUnit.

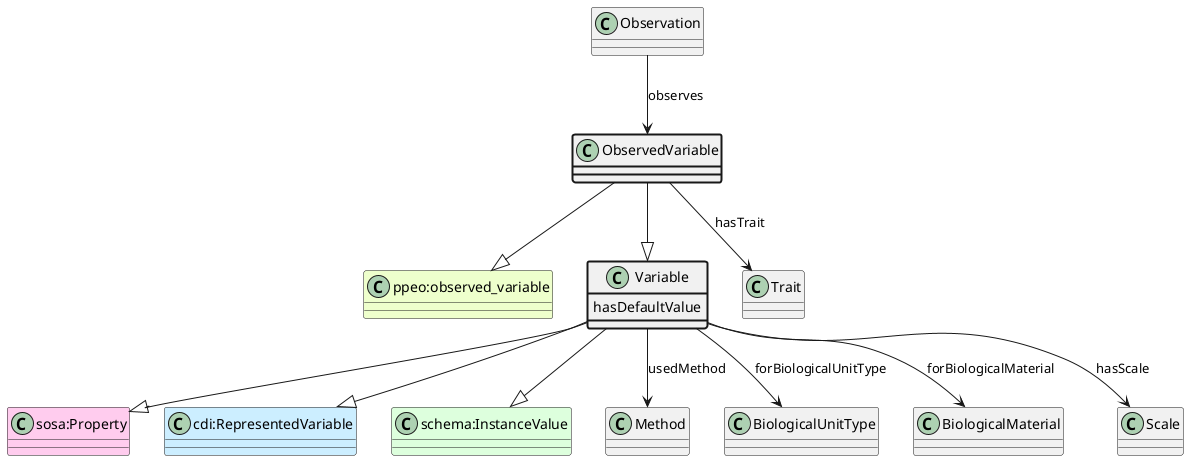

UML diagram for ObservedVariable

Superclasses

  • http://purl.org/ppeo/PPEO.owl#observed_variable
  • https://schema.plantphenomics.org.au/Variable
  • https://www.w3.org/ns/sosa/Property
  • http://ddialliance.org/Specification/DDI-CDI/1.0/RDF/RepresentedVariable
  • https://schema.org/InstanceValue

Properties

  • appn:Observation appn:observes appn:ObservedVariable
    • Identifies an ObservedVariable controlled by an Observation assay. The Observation records or estimates the state of the ObservationVariable recorded as a value specified in a hasResult or hasSimpleResult property.
  • appn:ObservedVariable appn:hasTrait appn:Trait
    • Identifies the Trait associated with a Variable.
  • ObservedVariable https://schema.plantphenomics.org.au/hasDefaultValue
  • appn:Variable appn:usedMethod appn:Method
    • Identifies a Method used to conduct an Assay.
  • appn:Variable appn:forBiologicalUnitType appn:BiologicalUnitType
    • Links a Variable to the BiologicalUnitType to which it relates.
  • appn:Variable appn:forBiologicalMaterial appn:BiologicalMaterial
    • Links a Variable to the BiologicalMaterial (i.e. crop) to which it relates.
  • appn:Variable appn:hasScale appn:Scale
    • Identifies the Scale associated with a Variable.
